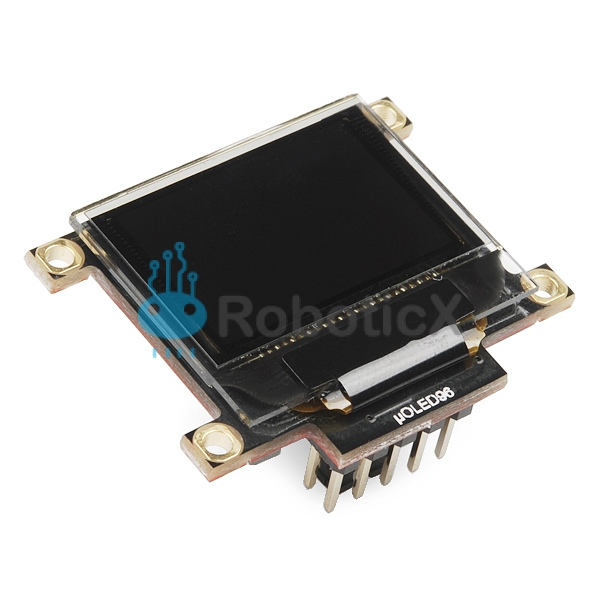

Serial Miniature OLED Module — 0.96″ (uOLED-96-G2 GFX)

$45.78 $63.63
The uOLED-96-G2(GFX) is a com­pact and cost effec­tive dis­play mod­ule using the lat­est state of the art Pas­sive Matrix OLED (PMOLED) tech­nol­o­gy with an embed­ded GOLDELOX-GFX2 graph­ics proces­sor that deliv­ers ‘stand-alone’ func­tion­al­i­ty to any project. Pow­er­ful graph­ics, text, image, ani­ma­tion and count­less more fea­tures are built inside the GOLDELOX-GFX2 chip.The mod­ule is designed to work out of the box and you are now ready to write your code in 4DGL (a high lev­el 4D Graph­ics Lan­guage) using the 4DGL-Work­shop3 IDE (edi­tor, com­pil­er and down­loader). This will save weeks even months of devel­op­ment time on your next embed­ded graph­ics project.4DGL is a graph­ics ori­ent­ed lan­guage allow­ing the devel­op­er to write appli­ca­tions in a high lev­el lan­guage, syn­tax sim­i­lar to pop­u­lar lan­guages such as BASIC, C and Pas­cal. The mod­ule offers mod­est but com­pre­hen­sive I/O fea­tures that can inter­face to ser­i­al, ana­logue, dig­i­tal, but­tons, joy­stick, sound gen­er­a­tion and Dal­las 1‑wire devices.In short, the uOLED-96-G2(GFX) offers one of the most flex­i­ble embed­ded graph­ics solu­tions avail­able.Fea­tures:96 x 64 res­o­lu­tion, 65K true to life col­ors, PMOLED screen0.96” diag­o­nal size, 32.7 x 26.7 x 5.7mm. Active Dis­play Area: 20mm x 14mmNo back light­ing with near 180° view­ing angleEasy 10 pin inter­face to any exter­nal device:3.3Vout, IO2, GND, IO1, RESET, GND, RX, TX, 5V, 5V OUT.Pow­ered by the 4D-Labs GOLDELOX-GFX2 graph­ics proces­sor high­ly opti­mized for 4DGL, the high lev­el 4D Graph­ics Lan­guage2 x GPIO port sup­ports:Dig­i­tal I/OA/D con­vert­er with 8/10 bit res­o­lu­tionCom­plex sound gen­er­a­tionDed­i­cat­ed RTTTL tune engineMul­ti-Switch Joy­stick, But­tonsDal­las 1‑Wire10K bytes of flash mem­o­ry for user code stor­age and 510 bytes of RAM for user vari­ables (255 x 16bit vars)1 x Asyn­chro­nous hard­ware ser­i­al port, TTL inter­face, with 300 baud to 600K baud.On-board micro-SD mem­o­ry card adap­tor for stor­ing of icons, images, ani­ma­tions, etc. Sup­ports 64MB to 2GB micro-SD mem­o­ry cards.Com­pre­hen­sive set of built in high lev­el 4DGL graph­ics func­tions and algo­rithms that can draw lines, cir­cles, text, and much more.Dis­play full colour images, ani­ma­tions, icons and video clips.Sup­ports all avail­able Win­dows fonts and char­ac­ters (import­ed as exter­nal fonts)4.0V to 5.5V range oper­a­tion (sin­gle sup­ply)Doc­u­ments: * Datasheet * Prod­uct Brief * Workshop4 IDE
