ARDUINO MEGA ADK REV3

$57.04 $79.29

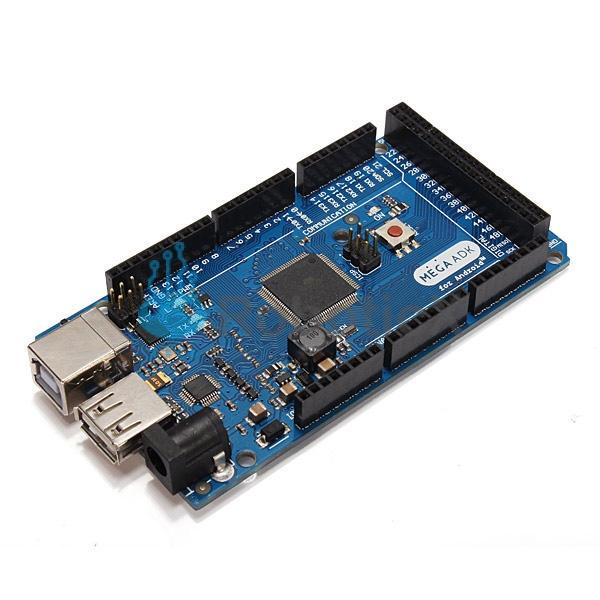

The Arduino MEGA ADK is a micro­con­troller board based on the ATmega2560. It has a USB host inter­face to con­nect with Android based phones, based on the MAX3421e IC. It has 54 dig­i­tal input/output pins (of which 15 can be used as PWM out­puts), 16 ana­log inputs, 4 UARTs(hardware ser­i­al ports), a 16 MHz crys­tal oscil­la­tor, a USB con­nec­tion, a pow­er jack, an ICSP head­er, and a reset but­ton.The MEGA ADK is based on the Mega 2560.Sim­i­lar to the Mega 2560 and Uno, it fea­tures an ATmega8U2 pro­grammed as a USB-to-ser­i­al con­vert­er. Revi­sion 2 of the Mega ADK board has a resis­tor pulling the 8U2 HWB line to ground, mak­ing it eas­i­er to put into DFU mode. Revi­sion 3 of the board has the fol­low­ing new fea­tures:  1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two oth­er new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the volt­age pro­vid­ed from the board. In future, shields will be com­pat­i­ble both with the board that use the AVR, which oper­ate with 5V and with the Arduino Due that oper­ate with 3.3V. The sec­ond one is a not con­nect­ed pin, that is reserved for future pur­pos­es.Stronger RESET cir­cuit.TECH SPECSMicro­con­trollerATmega2560Oper­at­ing Volt­age5VInput Volt­age (rec­om­mend­ed)7–12VInput Volt­age (lim­its)6–20VDig­i­tal I/O Pins54 (of which 15 pro­vide PWM out­put)Ana­log Input Pins16DC Cur­rent per I/O Pin40 mADC Cur­rent for 3.3V Pin50 mAFlash Mem­o­ry256 KB of which 8 KB used by boot­loaderSRAM8 KBEEPROM4 KBClock Speed16 MHzUSB Host ChipMAX3421ELength101.52 mmWidth53.3 mmWeight36 gDOCUMENTATIONArduino Mega ADK is open-source hard­ware! You can build your own board using the fol­low­ing files:EAGLE FILES IN .ZIPSCHEMATICS IN .PDFGetting StartedIn the Get­ting Start­ed sec­tion, you can find all the infor­ma­tion you need to con­fig­ure your board, use the Arduino Soft­ware (IDE), and start to tin­ker with cod­ing and elec­tron­ics.Google’s ADK doc­u­men­ta­tion.
