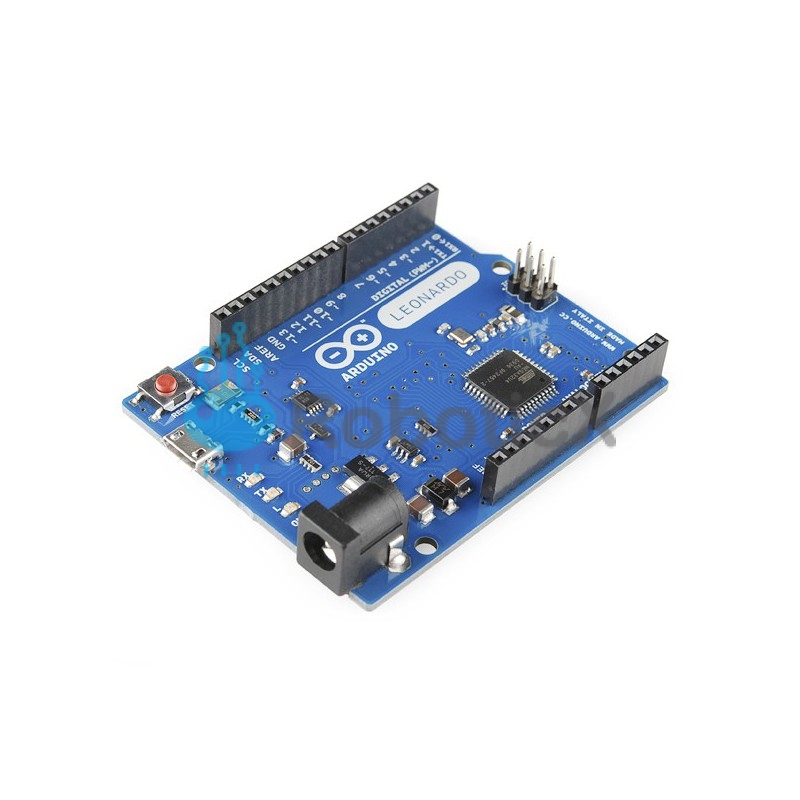

ARDUINO LEONARDO — CHINA

The Arduino Leonar­do is a micro­con­troller board based on the ATmega32u4 (datasheet). It has 20 dig­i­tal input/output pins (of which 7 can be used as PWM out­puts and 12 as ana­log inputs), a 16 MHz crys­tal oscil­la­tor, a micro USB con­nec­tion, a pow­er jack, an ICSP head­er, and a reset but­ton. It con­tains every­thing need­ed to sup­port the micro­con­troller; sim­ply con­nect it to a com­put­er with a USB cable or pow­er it with a AC-to-DC adapter or bat­tery to get start­ed. The Leonar­do dif­fers from all pre­ced­ing boards in that the ATmega32u4 has built-in USB com­mu­ni­ca­tion, elim­i­nat­ing the need for a sec­ondary proces­sor. This allows the Leonar­do to appear to a con­nect­ed com­put­er as a mouse and key­board, in addi­tion to a vir­tu­al (CDC) ser­i­al / COM port. It also has oth­er impli­ca­tions for the behav­ior of the board; these are detailed on the Get­ting start­ed with the Arduino Leonar­do.The Leonar­do is Arduino’s first devel­op­ment board to use one micro­con­troller with built-in USB. Using the ATmega32U4 as its sole micro­con­troller allows it to be cheap­er and sim­pler. Also, because the 32U4 is han­dling the USB direct­ly, code libraries are avail­able which allow the board to emu­late a com­put­er key­board, mouse, and more using the USB-HID pro­to­col!It has 20 dig­i­tal input/output pins (of which 7 can be used as PWM out­puts and 12 as ana­log inputs), a 16 MHz crys­tal oscil­la­tor, a micro USB con­nec­tion, a pow­er jack, an ICSP head­er, and a reset but­ton. It con­tains every­thing need­ed to sup­port the micro­con­troller; sim­ply con­nect it to a com­put­er with a USB cable or pow­er it with a AC-to-DC adapter or bat­tery to get start­ed.Features:ATmega32u4 Micro­con­trollerInput Volt­age: 7–12V20 Dig­i­tal I/O Pins7 PWM Chan­nels12 ADCs16MHz Clock Speed32 KB Flash Mem­o­ryDocuments:Schemat­icEagle FilesProd­uct PageArduino Site
