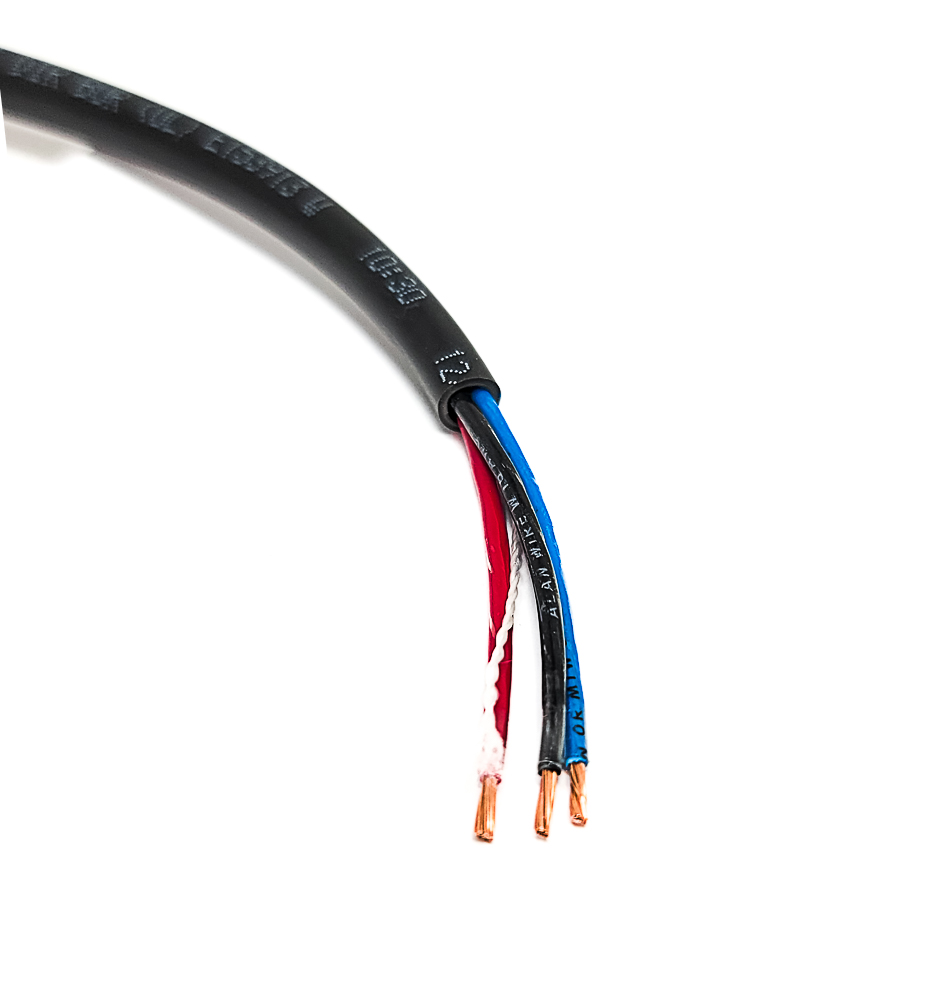

16awg THHN Cable, Black PVC Tray Cable, Red, Black, Blue
$23.97
$38.35
JACKETED TRAY CABLE, 3 WIRE, RED/BLK/BLU 16AWG THHN-PVC TRAY CABLE (Per Foot)Multi-Conductor Unshielded Cable 16-3Red/Black/BluePVC Jacket, BlackPVC/Nylon/PVC, Control, Unshielded, 600V, UL Type TC-ERCut to length – sold by the foot. Enter the desired footage in the QTY box. Minimum 1′ to maximum 1000′. Please call for longer put ups.Color: BlackApplications: In free air, raceways or direct burial. In wet or dry locations. Approved for direct burial, Class I, Div. 2 industrial hazardous locations per NEC. Permitted for Exposed Run (ER) use in accordance with NEC for 3 or more conductors.Also Known As: raceway cable, underground cable, multi-conductor THHN cable, lighting cable, control cable, signal and communication circuit cable, etc.Features: Rated at 90°C dry, 75°C wet. Ripcord applied to all cables with jacket thickness of 60 mils or less. Provides outstanding sunlight, cold bend and cold impact resistance. Offers the smallest cable O.D. available for suitable applications. Provides long service life. Provides good oil and chemical resistance. Meets cold bend test at -25°C. Meets the crush and impact requirements of Type MC cable.Compliances: Industry Compliances: – UL 66 NEC Type TFN conductors – UL 1277 Type TC-ER for 3 or more conductors, UL File # E57179 – UL 1581 – ICEA S-95-658 Flame Test Compliances: – UL 1277 – IEEE 383 – IEEE 1202 – CSA FT4 Other Compliances: – EPA 40 CFR, Part 261 for leachable lead content per TCLP – OSHA Acceptable – RoHS CompliantConductor: 18 AWG and 16 AWG fully annealed stranded bare copper to ASTM B3 Class B stranding per ASTM B8Insulation: Flame-retardant Polyvinyl Chloride (PVC) with clear Polyamide (nylon) Color-coded per ICEA Method 1, Table E-2 plus alpha-numeric printed numbers (does not include white or green)Jacket: Lead-free, flame-retardant, sunlight-resistant Polyvinyl Chloride (PVC)Options: Lead-free, flame-retardant, sunlight-resistant Polyvinyl Chloride (PVC)Color Code: Black, Red, Blue16/3 THHN-PVC Tray Cable Specifications*:Size:16 AWGNumber of Conductors:3Conductor Strand:7/.0192Minimum AVG Insulation Thickness:0.51 mm / 0.020 inchesMinimum AVG Jacket Thickness:1.14 mm / 0.045 inchesOutside Diameter:8.00 mm / 0.315 inchesCopper Weight:0.024 lbs per ftNet Weight:0.060 lbs per ftSignal-Communication CableWire Gauge 16 GaugeShielding Unhielded# of Conductors 3 Conductor
