40A, Fused-Switched, Non-Skirted Mini Relay, 12VDC, SPDT

$25.02 $44.29

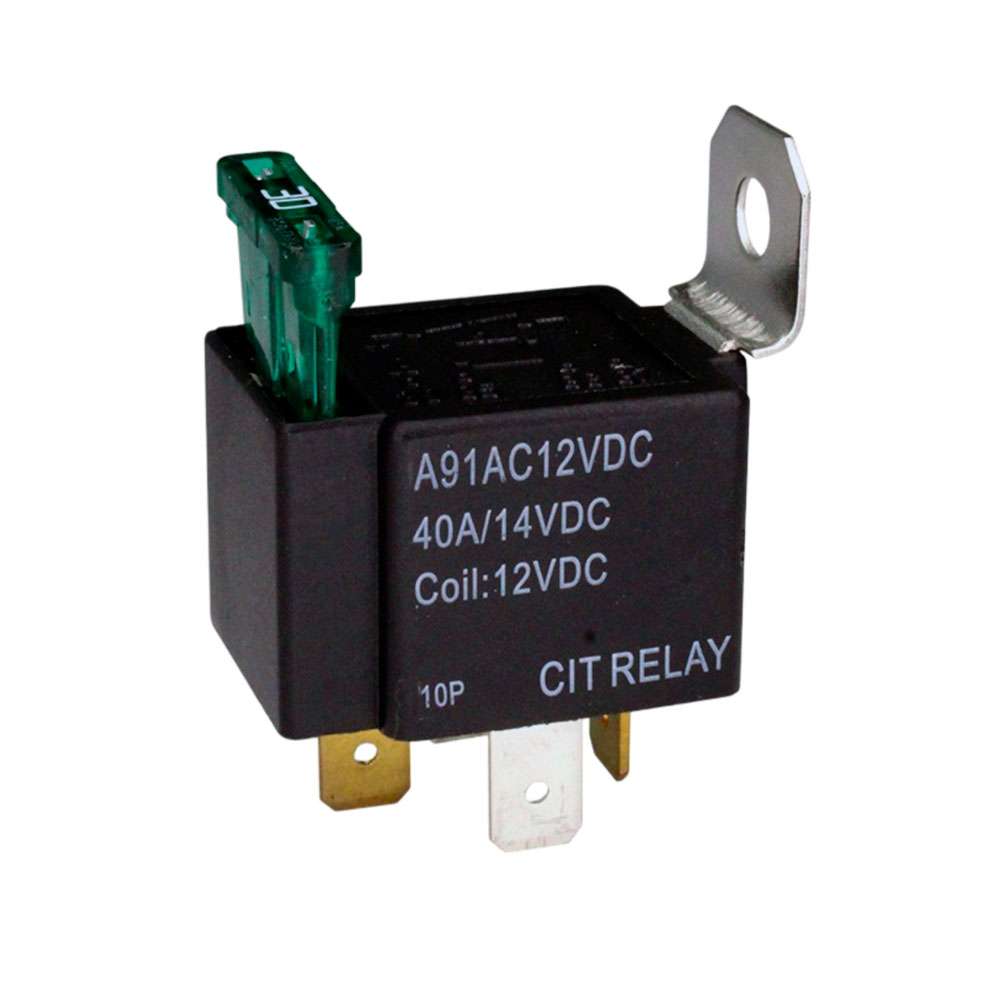

40A, Fused-Switched, Non-Skirted Mini Relay, 12VDC, SPDTRELAY AUTOMOTIVE SPST 40A 12VThe A91AC12VDC‎ by CIT is a nice easy option for a relay, has 40A Max, a single pole/single throw switching capability.  With 30a fuse built into the compact relay, this eliminates the need for a separate inline fuse.Recommended Relay Connector Body:  12034003TYPEDescriptionMfrCIT Relay and SwitchSeriesA9PackageTrayProduct StatusActiveCoil TypeNon LatchingCoil Current150 mACoil Voltage12VDCContact FormSPST-NO (1 Form A)Contact Rating (Current)40 ASwitching Voltage75VDC - MaxMust Operate Voltage8.4 VDCMust Release Voltage1.2 VDCOperate Time7 msRelease Time5 msFeatures-Mounting TypeChassis MountTermination StyleQuick Connect - 0.250" (6.3mm)Operating Temperature-40°C ~ 85°CContact MaterialSilver Tin Oxide (AgSnO)Coil Power1.8WCoil Resistance80 OhmsBase Product NumberA91ACFEATURES: Switching capacity up to 40AAccommodates standard sized automotive fuseStandard automotive relay footprintSuitable for automobile and lamp applicationsMetal mounting tabSPECIFICATIONS:Contact Arrangement 1A = SPST N.O.Contact Rating 40A @ 14VDCContact Resistance < 50 milliohms initialContact Material AgSnO2Maximum Switching Power 560WMaximum Switching Voltage 75VDCMaximum Switching Current 40ATYPEDescriptionMfrCIT Relay and SwitchSeriesA9PackageTrayProduct StatusActiveCoil TypeNon LatchingCoil Current150 mACoil Voltage12VDCContact FormSPST-NO (1 Form A)Contact Rating (Current)40 ASwitching Voltage75VDC - MaxMust Operate Voltage8.4 VDCMust Release Voltage1.2 VDCOperate Time7 msRelease Time5 msFeatures-Mounting TypeChassis MountTermination StyleQuick Connect - 0.250" (6.3mm)Operating Temperature-40°C ~ 85°CContact MaterialSilver Tin Oxide (AgSnO)Coil Power1.8WCoil Resistance80 OhmsBase Product NumberA91AC
